Zebra printer transfer object
.png)

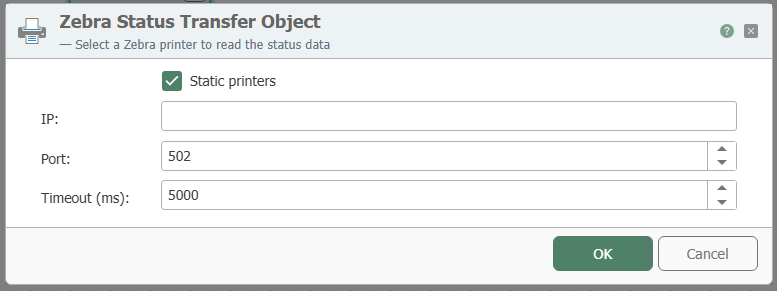

After double-clicking on the Zebra printer transfer object, set the following properties:
| Property | Description | | :----------------- | :---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------| Print template | Print template created in the plug-in configuration. | | Static printer | Activate the checkbox if you always want to use the same printer. Specify the IP and port. If the checkbox is not activated and you want to use a dynamic printer, the printer name must be specified at runtime (from a constant, variable, database, etc.). | | IP | Specify the IP address of your static printer. | | Port | Enter the port of your static printer. | | Timeout | Time (in ms) that the connection may take to establish before a connection error is returned |
The transfer object provides you with all placeholders from the document template. If these template variables are not filled in the transfer object, the router uses the default values stored in the template.
Note: You can also enter a host from outside in the field for the IP address. To do this, create a constant with the IP of the printer and drag an arrow to the IP address field.
