Wolke printer transfer object

Through the trigger you can add new commands to the plug-in. With the Telegram trigger it is also possible, through a command, to receive messages on the terminal, below in the example. Furthermore, the trigger can output a written message.

Wolke Drucker Transfer object

Set the following properties after double-clicking the trigger object:

Connection	Select a connection from the drop-down menu.
Command	Type a command <Command>
Help text	Enter a help text here, which is then displayed together with the command. Note: The help text is required because otherwise the commands cannot be passed to the bot.
Message type	Select a message type from the drop-down menu, e.g. Text message, Voice message...The message type “Any file” can be sent any file format (text, images, videos, etc.).
Authentication required	Activate the checkbox if you want to allow only authorized users to receive the messages.
Authorized users	Select allowed users from the drop-down menu.
User filter	Here you have the possibility to enter a filter to select specific users.

You can receive any form of a file with the Telegram trigger. To send a file from the OPC Router to Telegram, you need the Telegram Transfer Object. To send a file to the OPC Router, e.g. an image, you have to enter the trigger command as description. However, the file name of the image is not sent and you have to give the file a new name if you want to save the file.

Example Telegram Connection

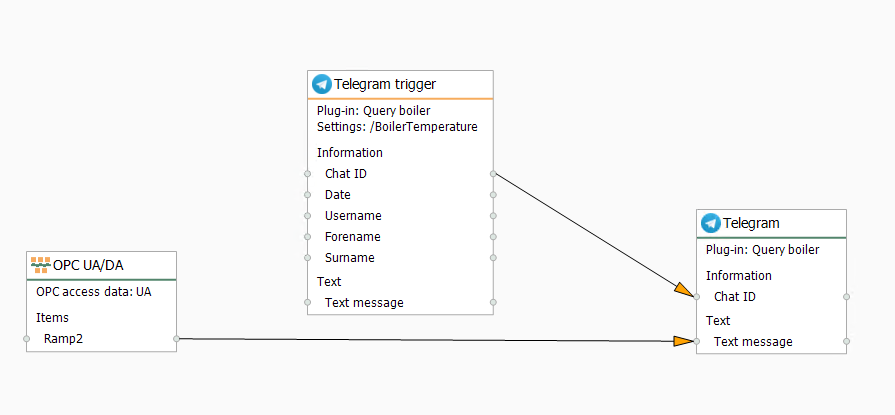

In our small example the boiler temperature is queried. The data is collected by the OPC router and can be queried via telegram.

To display the boiler temperature on a remote web-enabled device, proceed as follows:

1. Go to the link of your bot that you received together with the AccessToken from BotFather.
2. Enter the command /start.
3. If you click on /help, the BotFather gives you all possible commands.
4. Select the command /BoilerTemperature.
5. The boiler temperature and the help text will then be displayed on your device.
