Wolke printer transfer object

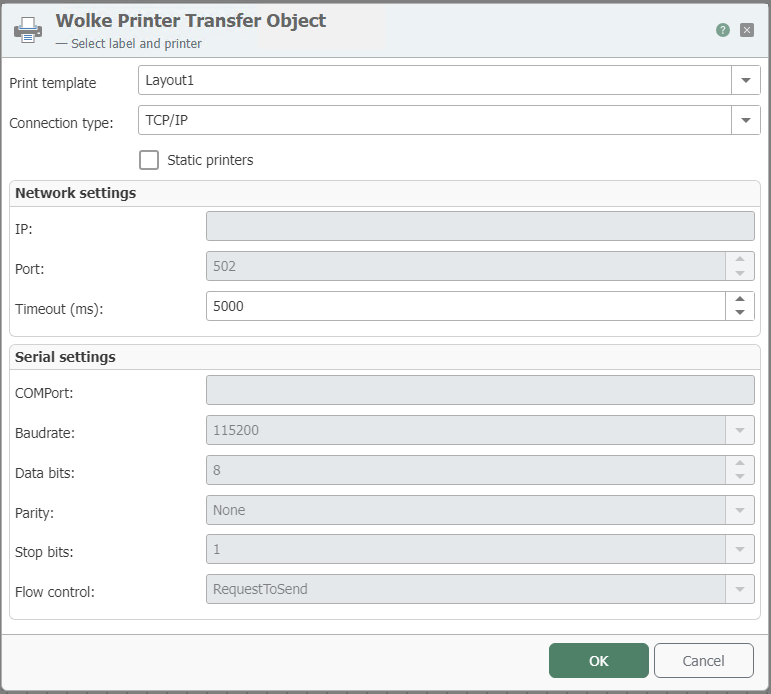

After double-clicking on the Wolke printer transfer object, set the following properties:

Wolke Drucker Transfer object

Print template	Print template created in the plug-in configuration.
Static printer	Activate the checkbox if you always want to control the same printer. Enter the IP and port for this. If the checkbox is not activated and you want to control a dynamic printer, then the printer name must be defined at runtime (from a constant, variable, database or similar)
IP	Enter the IP address of your static printer.
Port	Enter the port of your static printer.
Timeout	Time (in ms) that the connection establishment may take before a connection error is returned

The transfer object provides you with all placeholders from the document template. If these template variables are not filled in the transfer object, the router uses the default values stored in the template.

note

Note: You can also enter an external host in the IP address field. To do this, create a constant with the IP of the printer, for example, and drag an arrow to the IP address field.
