Version: 5.6

Exporting an OPC Router Project

In OPC Router 5, open the "Export Project" function via the menu item under "Settings."

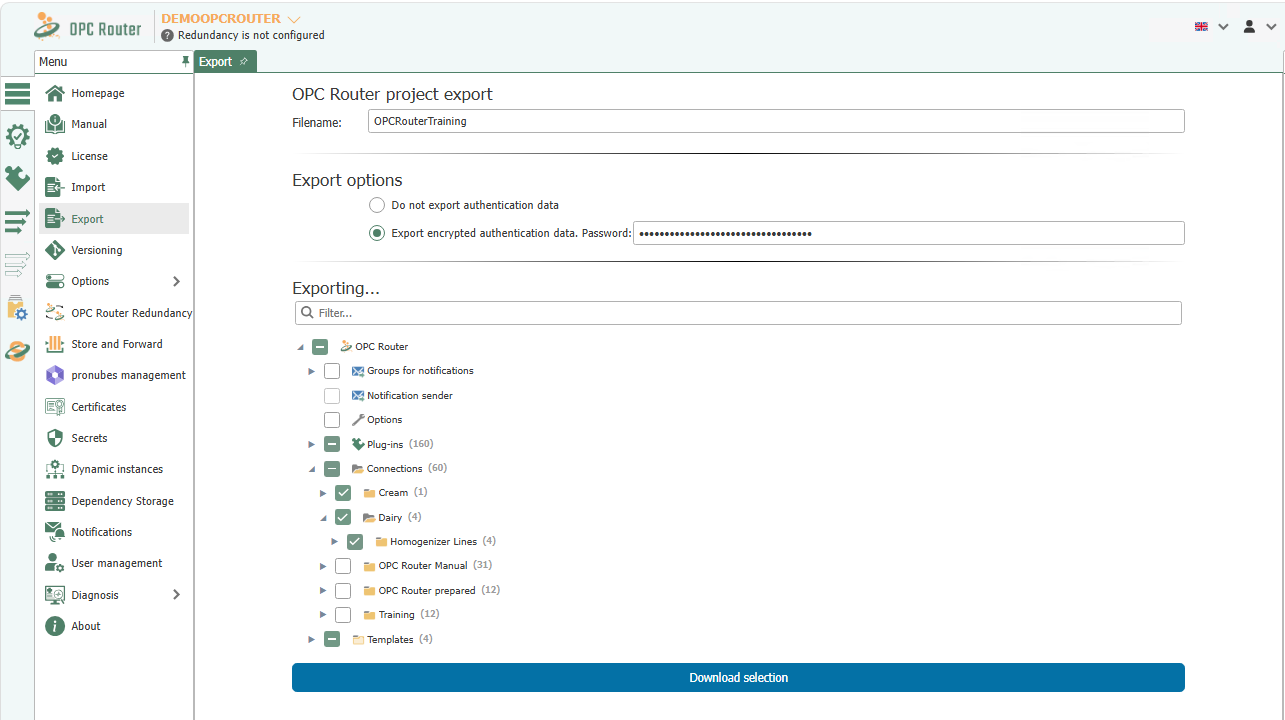

Export view in OPC Router 5 showing file name, export options, and selectable project structure

Enter a file name and select which parts of the project structure you want to export. If you select templates and connections, the associated structures are automatically included.

If necessary, specify whether authentication data should not be exported or should be exported encrypted with a password.

Then start the export by clicking “Download Selection.”
