Snowflake Insert
The Snowflake Insert transfer object inserts new records into a table or database view in the Snowflake AI Data Cloud during data transfer. The transfer object thus acts as a transfer destination.
Dialog Overview
General Properties
| Property | Description |
|---|---|
| Data Source | All Snowflake connections created in the Plug-ins section are available for selection here. If the desired connection does not yet exist, you can make it available in the Plug-ins section as the “Snowflake AI Data Cloud” plug-in. |
| Table | Table or database view into which records are inserted. |
| Available Columns | Columns in the table that have not yet been used. |
| Used Columns | Columns that are displayed as elements of the transfer object and are therefore used for the insert operation. |
Move columns by double-clicking the column name or using the <, >, <<, and >> buttons. You can add manual columns using the +User-defined button. These must be present in the target table at runtime—which is helpful, for example, in templates when the columns are not yet known during project configuration.
Behavior When Adding
During an insert, incomplete arrays are filled in. For example, if a single timestamp is to be inserted along with multiple array values, the timestamp is automatically reused multiple times until all array elements have been inserted. Therefore, the highest InsertCount is always determined during an insert. Entries with a lower count are expanded accordingly so that the table is completely filled.
Checking the Expected Number of Incoming Records
Optionally, you can check at runtime whether the expected number of records has been provided for the insert. For example, you can specify the minimum, maximum, or exact number of records that must be present for the insert operation to be executed.
Notes
The transfer object can also be selected for database views.
Example

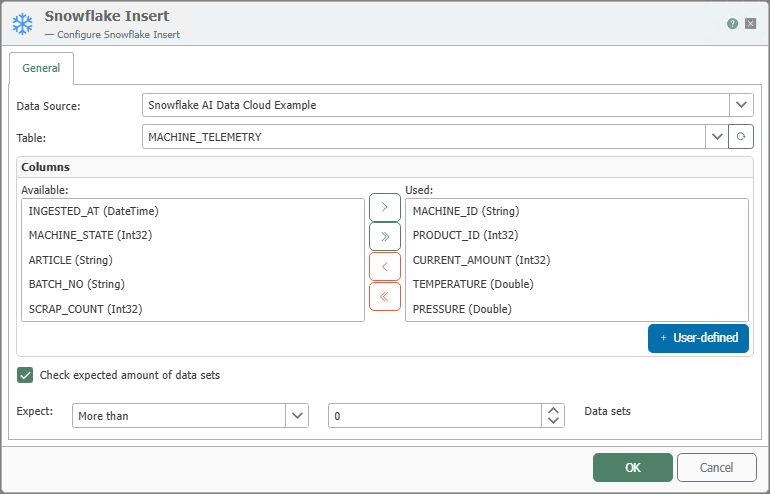

The OPC Router writes a data record collected from the machine to the MACHINE_TELEMETRY table so that it can be analyzed in the Snowflake AI Data Cloud. The transfer object shown above is configured for this example.
| Setting | Value |
|---|---|
| Table | MACHINE_TELEMETRY |
| Columns Used | MACHINE_ID, PRODUCT_ID, CURRENT_AMOUNT, TEMPERATURE, PRESSURE – the values are connected as targets |
The OPC Router generates the following SQL statement based on this:
INSERT INTO MACHINE_TELEMETRY (MACHINE_ID, PRODUCT_ID, CURRENT_AMOUNT, TEMPERATURE, PRESSURE) VALUES (?, ?, ?, ?, ?)
