Snowflake Select

The Snowflake Select transfer object retrieves one or more records from a table or database view in the Snowflake AI Data Cloud. The transfer object thus serves as a data source.

Dialog Overview

General Properties

Property	Description
Data Source	All Snowflake connections created in the Plug-ins section are available for selection here. If the desired connection does not yet exist, you can make it available in the Plug-ins section as the “Snowflake AI Data Cloud” plug-in.
Table	Table or database view from which data is read.
Available Columns	Columns in the table that have not yet been used.
Used Columns	Columns that are displayed as elements of the transfer object and are therefore available for the query.

Move columns by double-clicking the column name or using the <, >, <<, and >> buttons. Use the Up and Down buttons to sort the used columns.

Filter

The filter restricts which data records are read. The structure and operation of the Filter tab are described in detail under Filters and Filter Groups.

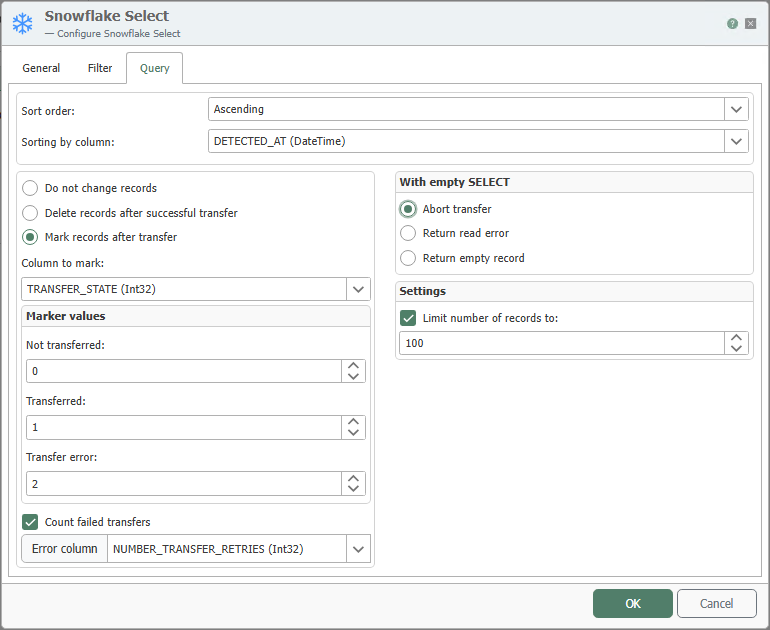

Query

Property	Description
Sort Order	Ascending or descending.
Sort by Column	Column by which the query result is sorted.
Do Not Modify Records	Only available for queries from tables. The transferred records are not modified.
Mark Records After Transfer	Available only for queries from tables. In a corresponding column of the source table, 1 is entered for each successfully transferred record and 2 for a failed transfer.
Column for Marking	Only available for queries from tables. Column in which the marker for a successful or failed data transfer is entered.
Marking Values	Values entered into the marking column. The marking values must be unique.
Count Failed Transfers	Counts the number of failed transfers.
Delete Records After Successful Transfer	Available only for queries from tables. Transferred records can also be deleted from the table.
Abort transfer (if query result is empty)	Aborts the data transfer if the query result is empty.
Trigger read error (if query result is empty)	Aborts the data transfer if the query result is empty and triggers an error log entry (in the router status and in the log file).
Return an empty record	Returns an empty record if the query result is empty.
Limit number of records to	Transfers only the number of records specified here. Sorting must be configured accordingly.

note

For Mark records after transfer, a simple primary key on the numeric ID column is required in the relevant table.

note

If you use Count Failed Transfers, select the column in Error Column where the number of failed transfers should be incremented.

warning

If you enable Delete records after a successful transfer, the records in the source table will be permanently deleted.

Notes

Whenever possible, use Snowflake Select with filters so that the entire table is not loaded. For example, when using transfer flags, filter by Transfer Flag <> 1.

To mark transferred records, provide a separate “Transfer Flag” column (not transferred, transferred, transfer error). The column should have a default value of 0 and must not allow NULL values. Sort the results in ascending order by the transfer flag so that records that have not yet been transferred are processed first.

Example

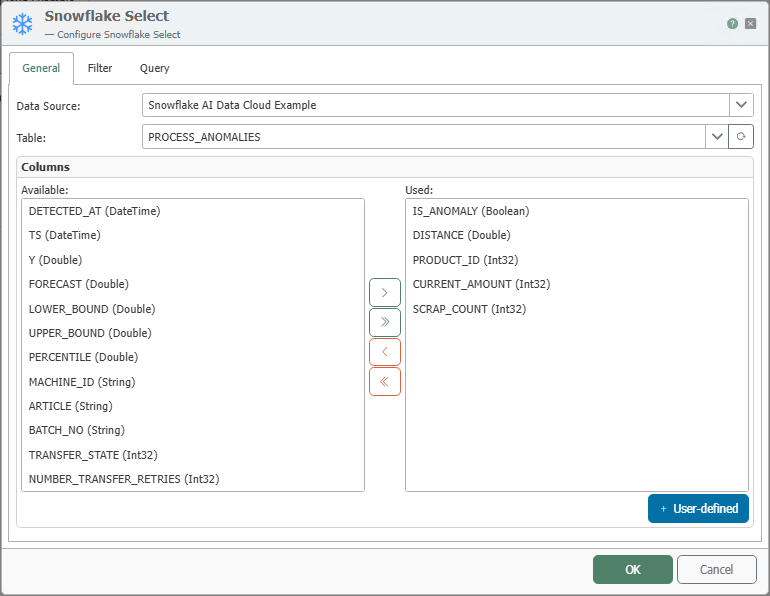

The OPC Router reads the anomalies detected by the Snowflake AI Data Cloud from PROCESS_ANOMALIES in order to respond to them at the machine. The filter restricts the query to records identified as anomalies; the “Query” tab marks the read records so that each is processed only once. The transfer object shown above is configured for this example.

Setting	Value
Table	PROCESS_ANOMALIES
Columns Used	IS_ANOMALY, DISTANCE, PRODUCT_ID, CURRENT_AMOUNT, SCRAP_COUNT
Filter	IS_ANOMALY = TRUE
Query	“Mark records after transfer” using the TRANSFER_STATE column

The OPC Router generates the following query based on this:

SELECT IS_ANOMALY, DISTANCE, PRODUCT_ID, CURRENT_AMOUNT, SCRAP_COUNT FROM PROCESS_ANOMALIES WHERE IS_ANOMALY = TRUE
