OPC data transfer via transfer object in 500ms

Systems

Host

operating system: Windows 11
RAM: 32 GB
processor: Intel i7-8700

Virtual machines

OPC Router

operating system: Windows Server 2022
RAM: dynamic, up to 16GB
Virtual processors: 8
OPC Router: 5.3.5008.157 (inraySDK version: 3.32.6002.24)

Test server

Operating system: Windows Server 2025
RAM: 8 GB
Virtual processors: 6
OPC server: IoT Edge OPC UA PLC in Docker

Test setup

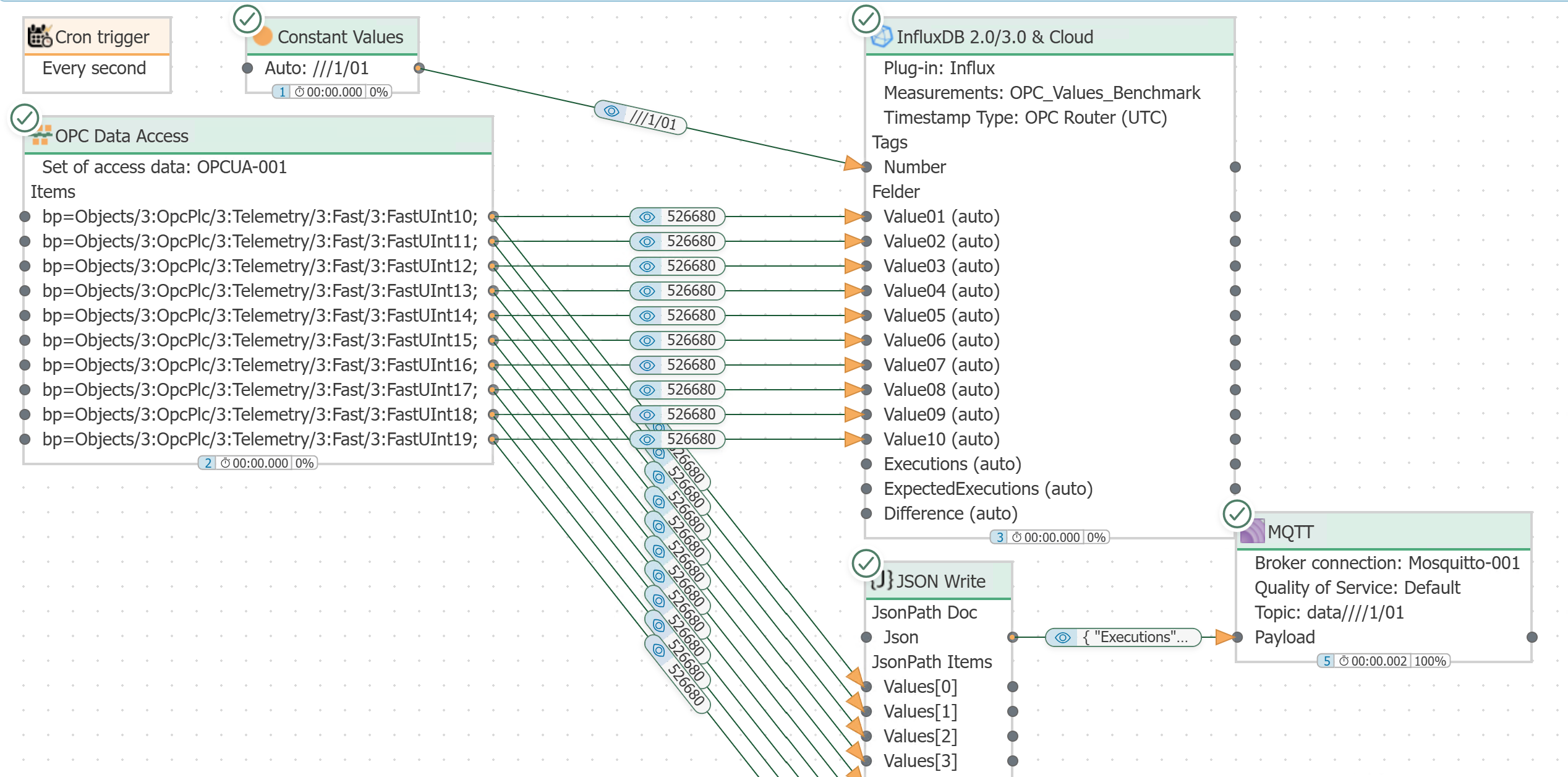

In the connections, a batch read transfer object or a data access transfer object was used to read 10 data points each. The data is sent to MQTT and also written to an Influx database.

Separate tests were carried out with data change triggers, time triggers and cron triggers. Performance was determined by comparing the expected number of executions with the actual number of executions.

note

The deviations in the tables were rounded to the nearest five.

note

In this test, we deliberately pushed the OPC Router and the OPC server to and beyond their performance limits. Data rates of up to 20,000 tags per second were achieved.

Results when using the cron trigger

With the batch read TO

Connections	Data points	Trigger interval	Expected executions	Deviation	Plug-in count
2000	20000	1 second	500	0 - 10	2
1000	10000	1 second	500	TBD	1

With the OPC Data Access TO

Connections	Data Points	Trigger Interval	Expected executions	Deviation	Plug-in count
1000	10000	1 second	500	0 - 5	1

Results when using the data change trigger

With batch read transfer object

note

At a data change rate of less than 500 ms, the sample rate was adjusted accordingly in the plug-in.

Connections	Data points (total)	Data changes	Expected executions	Deviation	Plug-in Number
100	1000	500 ms	500	0	1
250	2500	500 ms	500	0	1
500	5000	500 ms	500	0 - 20	1
1000	10000	500 ms	500	55 - 80	1
50	500	250 ms	500	TBD	1
100	1000	50 ms	500	TBD	1
250	2500	50 ms	500	TBD	1
500	5000	50 ms	500	TBD	1

With OPC Data Access Transfer Object

Connections	Data points Read	Data changes	Expected executions	deviation	Plug-in Number
100	1000	500 ms	500	0	1
250	2500	500 ms	500	5 - 30	1
500	5000	500 ms	500	25 - 40	1
1000	10000	5 00 ms	500	20 - 60	1
50	500	250 ms	500	TBD	1
100	1000	50 ms	500	TBD	1
250	2500	50 ms	500	TBD	1
500	5000	50 ms	500	TBD	1

Results when using the time trigger

note

Please note that the time trigger interval is the time that is waited between executions. Since the execution time is not included in the calculation, the time trigger already results in a difference. Therefore, the number of expected executions cannot be achieved exactly here, but only as an approximation.

Using the batch read transfer object

Connections	Data points	Trigger Interval	Expected executions	deviation	Plug-in Number
100	1000	500 ms	500	TBD	1
250	2500	500 ms	50 0	30 - 35	1
500	5000	500 ms	500	30 - 35	1
1000	10000	500 ms	500	50 - 60	1
50	500	250 ms	500	TBD	1
100	1000	250 ms	null	TBD	1
250	2500	250 ms	500	TBD	1
500	5000	250 ms	500	TBD	1

With the OPC Data Access transfer object

< td>250 ms

Connections	Data points	Trigger Interval	Expected executions	deviation	Plug-in Number
100	1000	500 ms	500	0	1
250	2500	500 ms	500	30 - 35	1
500	5000	500 ms	500	30	1
1000	10000	500 ms	500	60 - 70	1
50	500	250 ms	500	TBD	1
100	1000	250 ms	500	TBD	1
250	2500	250 ms	500	TBD	1
500	5000	500	TBD	1
