Additional settings for logging in via Windows user
The OPC Router offer you two possibilities of logging, the login by User, created while the installation or system administrators via the OPC Router, and the login by Windows User. For security reasons, in many environments, logging in via Windows user is only possible if HTTPS has been set up.
In order, for a login to be possible, the certificate must contain the name used for access via the web browser. For systems that are part of a Windows domain, for example : "computer123.mycompany.local", an alternative name (Subject Alternative Name) like "computer123.mycompany.local" with the full name, including the domain, must be stored in the certificate.\
Certificates created for the HTTPS Installation should be trusted by installing the certificates under Windows.
The Windows logging can be limited by security settings in the group policies and via the domain. If the Windows login is only allowed for websites that are located in the local intranet, an exception must be added for all the systems that wish to reach the OPC Router so that the system where the OPC Router was installed is trusted.\

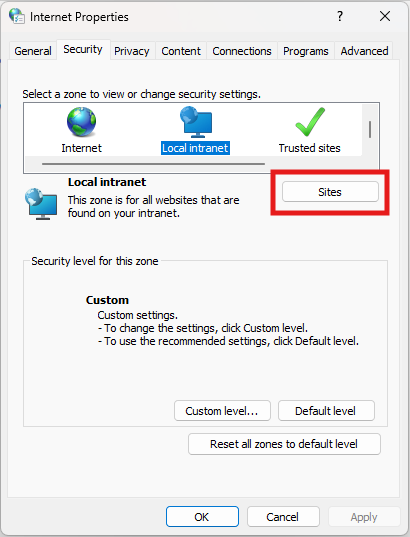

In the Security tab of Internet options, choose Local intranet and edit the sites

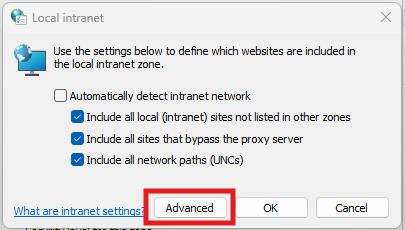

Click on the "Advanced" button in the "Site" dialogue

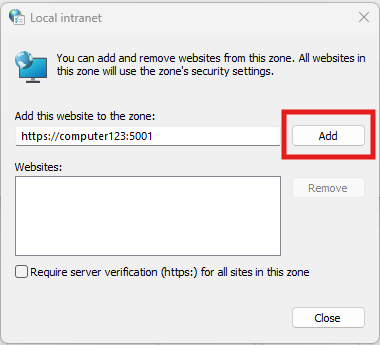

Add the system on which the OPC Router was installed
