SAP® Plug-in

note

Note: If you want to use load balancing, you need an Enterprise license.

The following properties have to be specified for each set of SAP® access data:

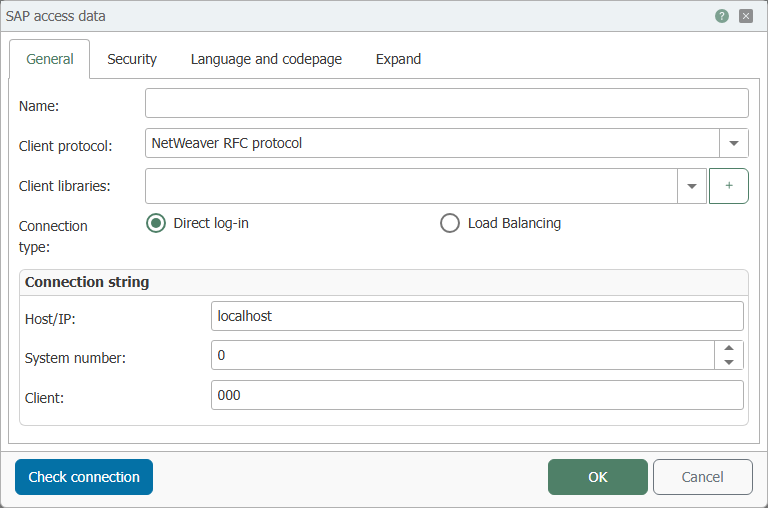

General

Name
Name	This set’s name. The name will be shown in projection. Select a name you will recognize!
Client protocol	SAP driver used by the OPC Router for communication. Select the client protocol from the drop-down menu: RFC Protokoll Netweaver RFC Protokoll
Client libaries	Add here the *.dll files for windows and the *.so files for Docker.
Connection type	Select the desired registration procedure: Direct log-in Load Balancing

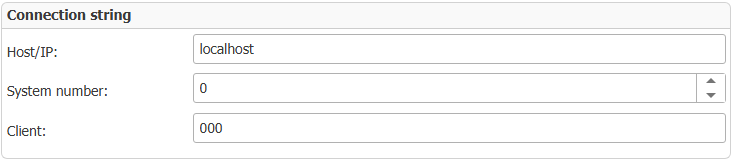

Direct log-in:

Host/IP	Server (Name or IP) with SAP® system. Explicit log-on is required (no load balancing).
System number	Number of SAP® system.
Client	SAP® client (company code).

Load Balancing:

Message server	Name or IP of SAP® message server
Log-on group	Log-on group (of SAP® system)
System number	Number of SAP® system
Client	SAP® client (company code).

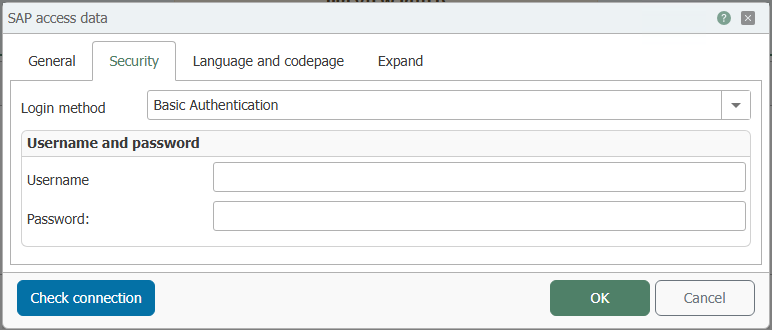

Security

Login method	Basic Authentication Secure Network Communications (SNC)

Basic Authentication:

Username	Username to log onto SAP® system.
Password	Password to log onto SAP® system.

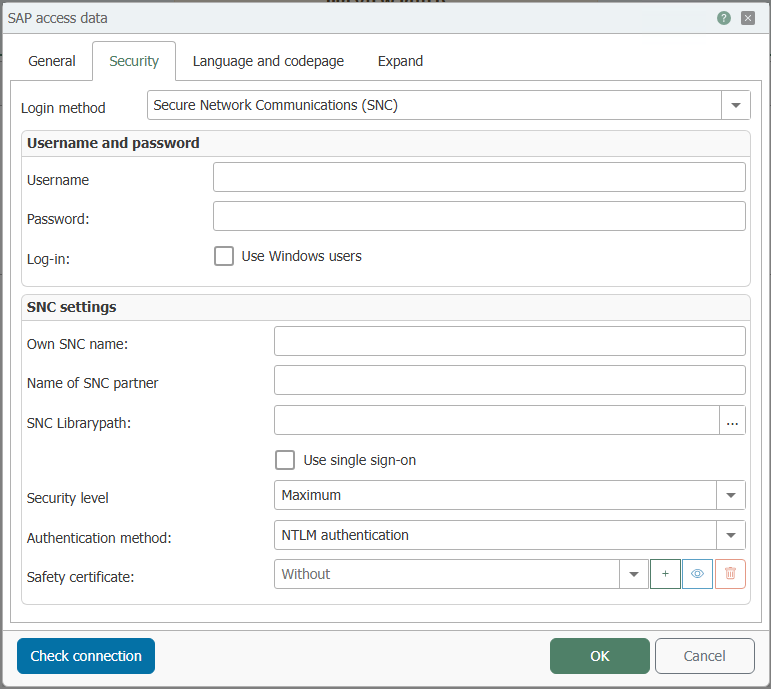

Secure Network Communications (SNC):

Contact the support if you want to use the sapscryptto.dll file.

note

The sapcrypto.dll file is not provided by inray.

Username	Username to log onto SAP® system.
Password	Password to log onto SAP® system.
Log-in	Use your Windows user to log on to the SAP® system.

Own SNC name	Name in format p:CN=... as it can be found in the issued certificate
Name of SNC partner	Entry the SNC partner name in the format p:CN=...
SNC Librarypath	The SNC library path can be configured here. It can be selected in a dialogue window after the ‘...’ button has been clicked.
Use single sign-on	Complete access to all systems with a single login
Security level	Selection of the security level from the drop-down menu e.g. Maximum or Standard.
Authentication method	Selection between NTLM Authentification or Kerberos5 Authentication.
Safety certificate	Select a security certificate from the drop-down list. The plus sign allows you to add another certificate, the minus sign removes one. Another button allows you to display the properties of an existing certificate.

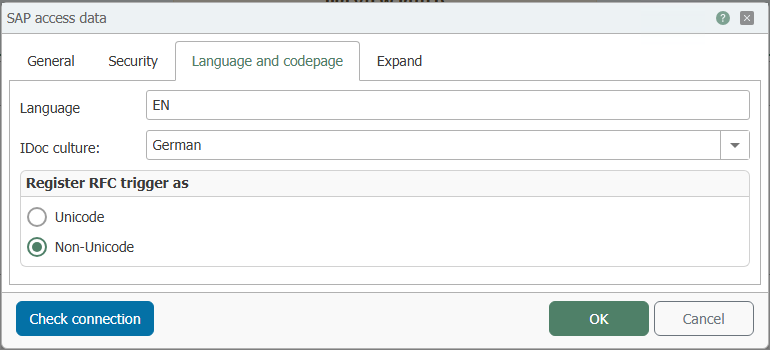

Language and codepage

Language	Enter the language you wish to use here. For example, ‘de’ stands for German, ‘en’ for English, etc. The language you want to use must be available on the SAP system.
IDoc culture	Selection of the IDoc language (Culture) German or English to prevent a crash if an instance in the SAP® plug-in contains an invalid IDoc language. The date notation for example is different: First February in German 01.02.2018, in English 02.01.2018

Register RFC Trigger as

Unicode	Register RFC triggers as unicode
Non-Unicode	Register RFC triggers as non-unicode

If you use SAP Netweaver, you must activate the setting Unicode. If you use the RFC Protocol, the encoding dependent on which librfc32l file you use. The file exists with Unicode (librc32u) and without Unicode (librfc32).

The target in the SAP Transaction SM59 must be changed in Unicode/No Unicode, too. This depends on, what is set in the OPC Router and which library is used.

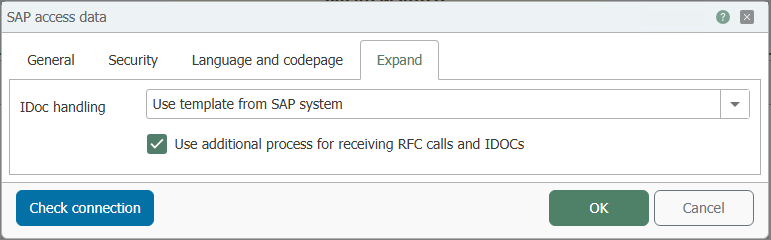

Expand

IDocHandling	Use template from SAP system The standard values from the SAP system as defined in the segments are available here. Create empty IDoc Only the segments are transferred, but these are empty.
Use additional process for receiving RFC calls and IDocs	If this check box is activated, the OPC Router is not stopped when an error occurs in the SAP trigger (RFC or IDoc) and continues to work.

You can use the button “Test” to check whether your connection is successful.

note

Note: To use the preferred settings from the used SAP user, the OPC Router need read access on the SAP table USR01.

Configuring the Port

By default, OPC Router uses port “33_<System-Nummer>_” to communicate with the SAP® server, e. g.. “3301”, if System-No = 01. If your SAPO system uses a different port and SAP® GUI is not installed, you have to adjust the port:

1. Backup file C:\Windows\System32\drivers\etc\services.

2. Open file C:\Windows\System32\drivers\etc\services with a text editor (not the backup).

3. Add (or change) “sapgw00”, whereas the port has to have format “XX00” e. g. “3600”.

   sapgw00      <Portnummer>/tcp

4. Save the file.

OPC Router will use that specific port.
