Node Publish

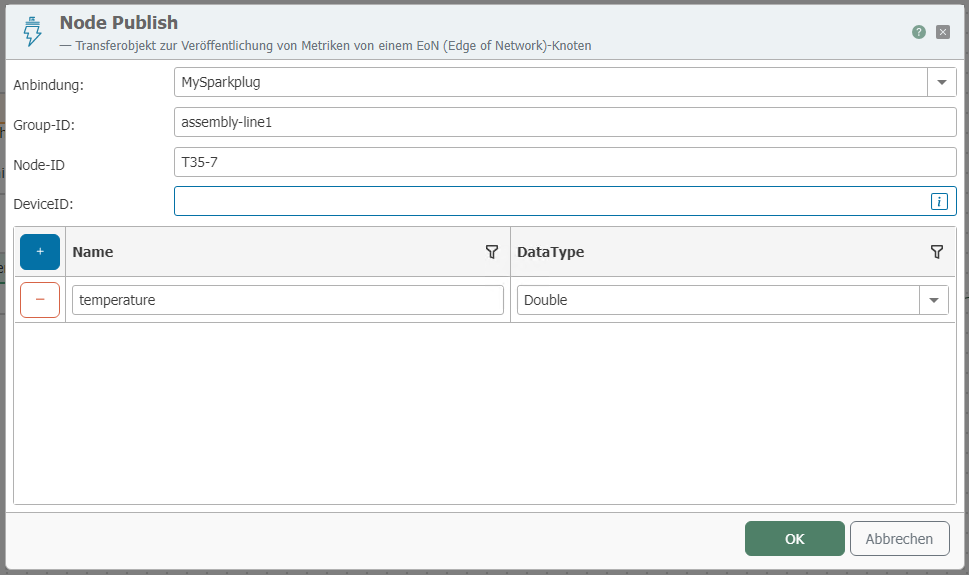

You can use the Sparkplug Node Publish transfer object to send a defined payload to various applications. The different nodes can be narrowed down and accessed using the filter options.

note

Only connections that have been created for node profiles in the plug-in settings can be selected.

Sparkplug connection	Select the Sparkplug connection created under Plug-ins.
Group ID	Assign a Group ID to the object. Leave the field blank to use the plug-in settings.
Node ID	Assign a Node ID to the object. Leave the field blank to use the plug-in settings.
Device ID	Assign a unique Device ID to the object. (Optional)
Items	Enter the payload data for the connection here. As usual, you can use arrows to supply data.
