Node publish

The Sparkplug Node Publish transfer object allows you to send a defined payload to different applications. The different nodes can be narrowed down and reached via the filter options.

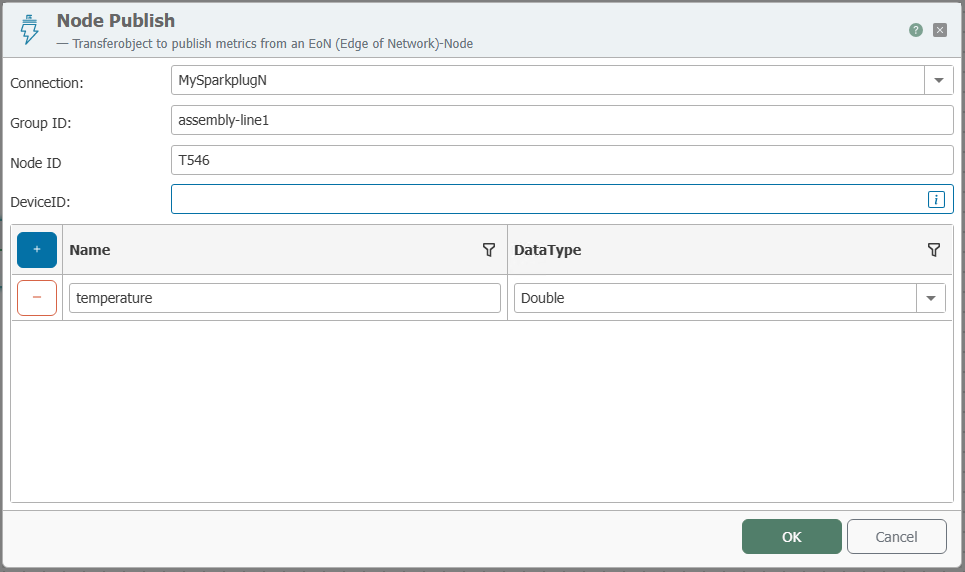

Node Publish Transfer object

note

Only connections created for node profiles in the plug-in settings can be selected.

Sparkplug-Anbindung	Select a Sparkplug connection created under Plug-Ins.
Group ID	Select a Group ID for the transfer object. Leave the field blank to use the settings of the plug-in
Node ID	Select a Node ID for the transfer object. Leave the field blank to use the settings of the plug-in
Device ID	Optional
Items	Enter the payload data for the connection here. These can be supplied with data via arrows, as usual.
