Videojet Update Printer Transfer Object

Videojet Update Printer

The Videojet Update Printer transfer object selects an existing label in the printer and fills the specified printer variables with values.

Videojet Update Printer Transfer Object

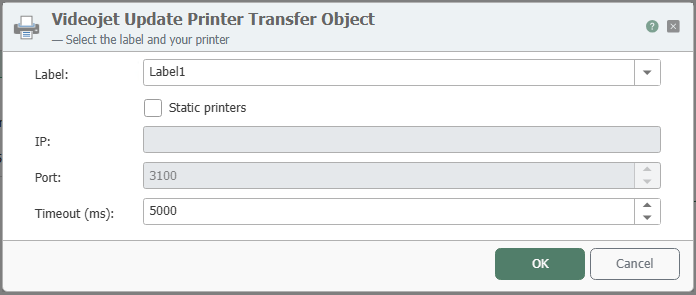

After double-clicking the Videojet Update Printer transfer Object, set the following properties:

Settings name	Description
Label	Select a label from the drop-down menu. If you do not assign any values to the transfer object, the default values that you specified for this label in the Videojet Printer plug-in will be used.
Static printers	activated: The printer controlled will always be the same, for this enter the IP and the Port. deactivated: The printer is dynamic, the name of the printer will have to be defined during the runtime (by a constant, a variable a database or others.)
IP	Enter the IP address of your static printer. Note: This field is only available if you have selected the "Static printers" field.
Port	Enter the port of your static printer. Note: This field is only available if you have selected the "Static printers" field.
Timeout	Amount of time in milliseconds after which the printer will be considered unreachable.

You can assign values to the fields of the transfer object and trigger the printer using the “Label” area.
