Transfer object

Windows printer

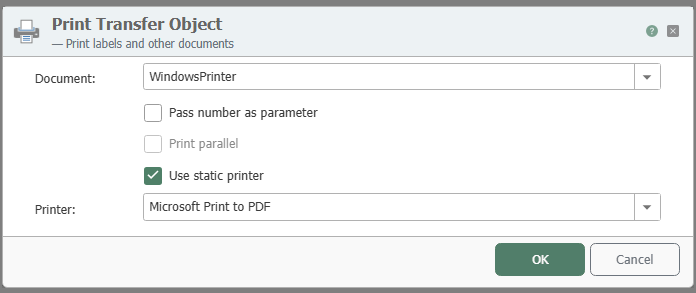

Set the following properties after double clicking the transfer object for generic printer:\

Windows Printer Transfer Object

Document	Document template, created in the Plug in Configuration
Specify number of copies	It can now be set to request multiple copies for one-sided documents.Only 1 (!) print job is sent for this! Whether the document is printed single-sided or double-sided must be specified in the printer driver. So labels can be printed on the front and back side if necessary.
Static printer	- activated: The printer is set up during creating time and is not be changed during run time. activated: The printer is set up during creating time and is not be changed during run time. deactivated: The printers name has to be defined during run time (from variable, data base or similar).
Parallel printing	Activate this option if you want to print on different printers parallel.
Printer	Enter the port of your static printer.

The transfer object gives you all placeholders from the document template. Are these template variables not be filled in the transfer object, the router uses the standard value from the template.

Should you call the printer dynamically, please pay attention to the correct spelling of the printers name- it has to be equal to name given in Windows.
