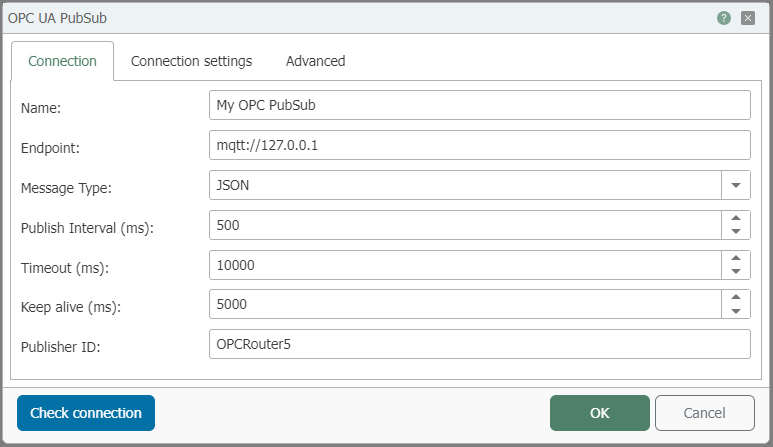

OPC-UA PubSub

connection

Property	Description
Name	Assign a name to the plug-in.
Endpoint	Enter the endpoint for the OPC-UA PubSub server here.
Message Type	Select the message type you want here: JSON UADP
Publish Interval (ms)	Set the interval at which messages should be published.
Timeout (ms)	Specify here after how many seconds a timeout occurs.
Keep Alive (ms)	Time interval until the next message is sent.
Publisher ID:	Assign a unique ID for the OPC Router here.

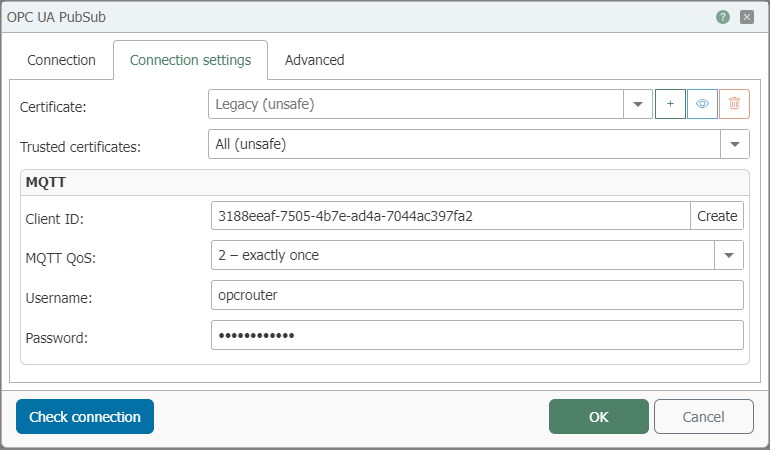

Connection Settings

Property	Description
Certificates	Add a certificate here for encrypted communication.
Trusted Certificates	Here you can select which server certificates should be accepted.

MQTT

Property	Description
Client ID	Enter the client ID here. To do so, click the “Generate” button.
MQTT QoS	Set the QoS.
Username	Enter the username here.
Password	Enter the password here.

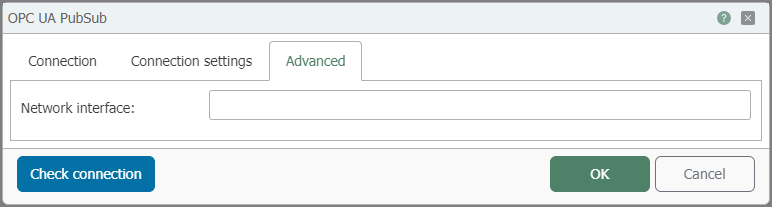

Advanced

Property	Description
Network Interface	Specifies which network interface should be used.
