Notification group

Via the menu item “Extras - Settings” you will find the notification area at the button for the basic settings.

The mail can be used for the following scenarios:

• transfer error
• plug-in error, plug-in again responsive
• connection error (plug-in / trigger error)
• runtime was stopped / started

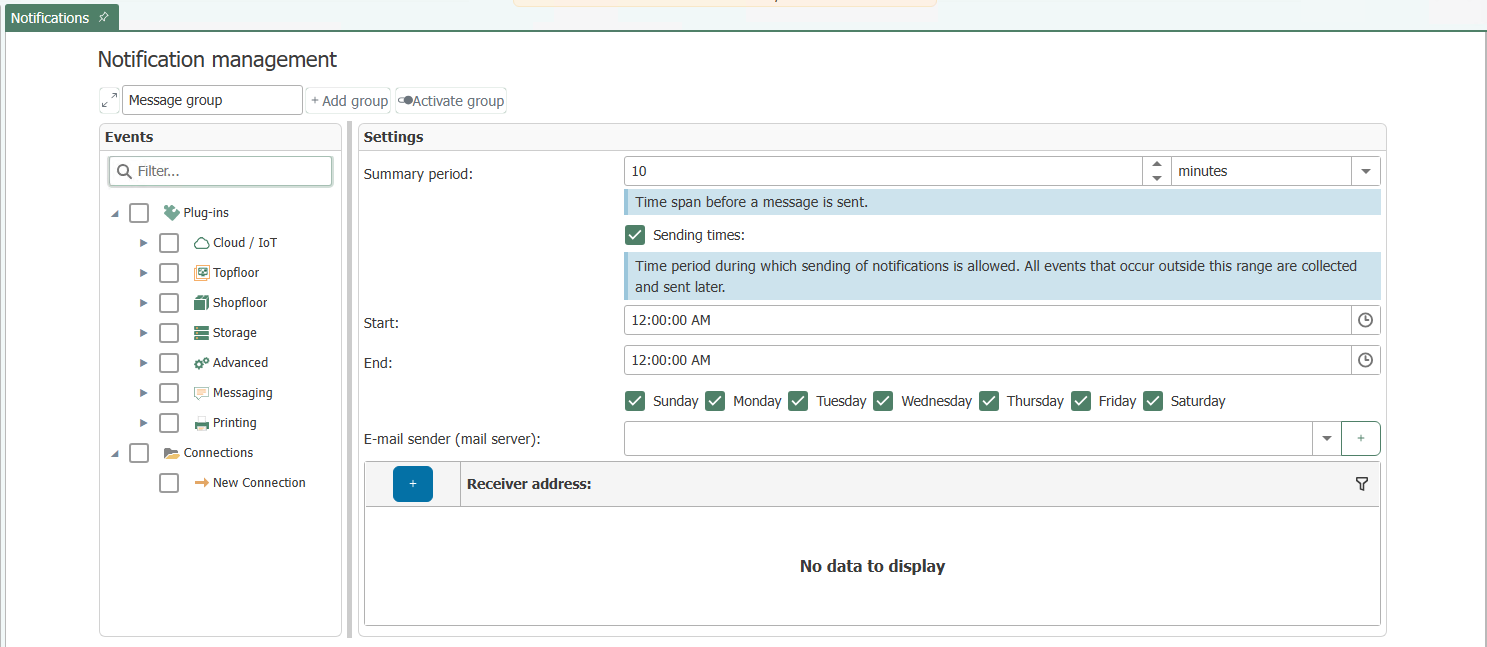

At this point, enter all the shipping information and select the areas to which the notification applies in the list of events. You can also give a name for the notification via the settings. Click on the pen button. To rename an existing notification, click the plus sign. With the On / Off-ToggleSwitch you activate the notification or deactivate it.

Settings

consolidation interval	The amount of time before a message is sent.
Timespan which is used until a message gets send	The length of time in which you can send. Events outside of this range are collected and sent later. Enter a start time and an end time and, if necessary, activate a weekday by activating an appropriate checkbox.
E-Mail sender (mail server)	Select a mail server as sender from the drop-down menu. To add a mail server, click on the button with the plus sign and make the settings. To edit or delete a mail server, select the appropriate buttons.
Receiver	At this point, enter the recipients who should receive this notification.

E-mail sender name

Name	Give the e-mail notification a name.

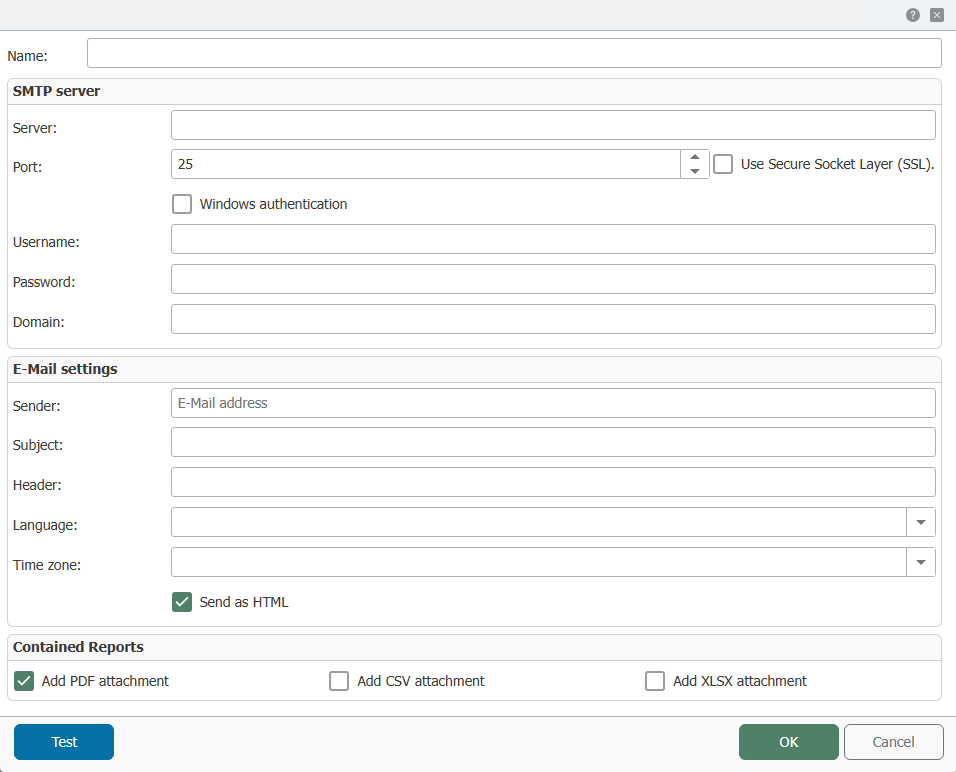

SMTP-Server

Server	Name of the server.
Port	Port on the server, which is used for the mail traffic.
Use Secure Socket Layer benutzen (SSL)	Uses SSL encryption. The server must support this, the appropriate port must be set.
Windows authentification	Alternatively, uses the user under which the router runtime is running (default: “system”).
Username	Username for logging on to the server (SMTP or NT authentication).
Password	Password to log in to the server (SMTP or NT authentication).
Domain	Domain to which the user is registered. (For login to the server via NT authentication)

E-Mail settings

Sender	Enter the sender e-mail address. The sender must have the format of a mail address (name@domain.xx).
Subject	Enter a subject for your notification. Max 255 characters are possible.
Header	Extended entry of a header possible.
Language	Select a language from the drop-down menu.
Time zone	Select a time zone from the drop-down menu.
Send as HTML	Activate the checkbox if you want to send the notification in HTML format.

Enthaltene Reports

Add PDF attachment	Activate the checkbox if you want to send a PDF file.
Add CSV attachment	Activate the checkbox if you want to send a CSV file.
Add XLSX attachment	Activate the checkbox if you want to send a XLSX file

The “Test” button allows you to verify that the server connection is working.

Confirm your entries with “OK”.
