Using versioning

To use versioning in the OPC Router, navigate to the settings and click on the “Versioning” option.

The various snapshots are now displayed in the OPC Router.
As soon as the project is published, a new snapshot is automatically created.

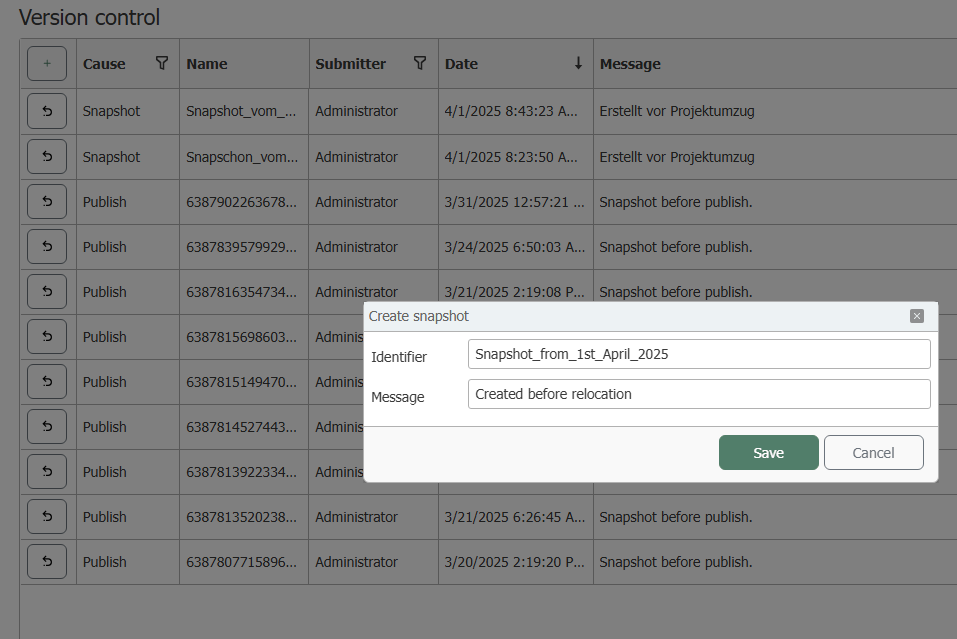

At the top left, you can create a new snapshot using the button.

note

The button is only active if there are changes in the project.

Enter a name for the snapshot and a message as a comment to help you identify the snapshot in the future.

The arrow symbol shows you which status is currently loaded.
If no entry with an arrow symbol is displayed, it means that no snapshot has been loaded yet.

You can use the return symbol to select and restore any of the available snapshots.
