Import OPC Router 4 project

You open the “Import OPC Router 4 project” function in the menu bar under “File”.

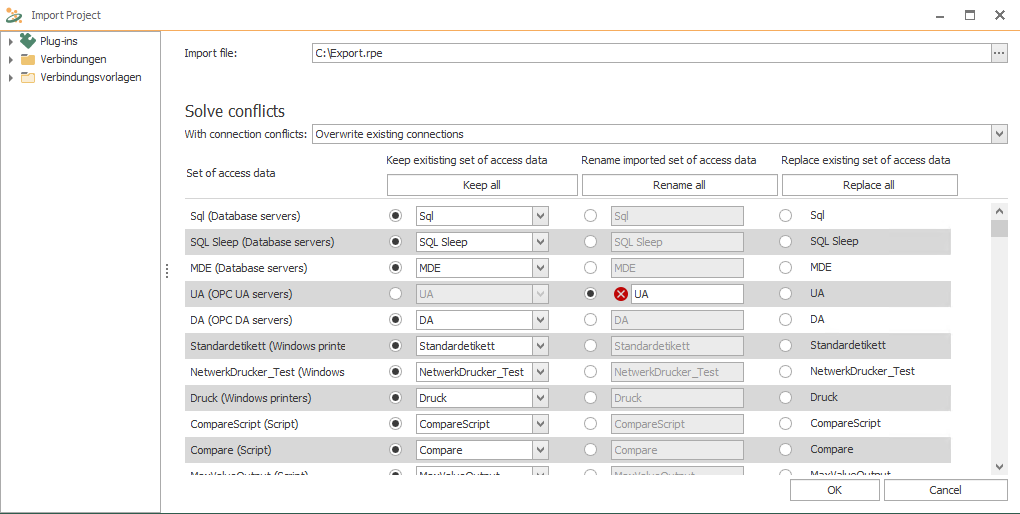

Select a file to import and resolve the conflicts of the bindings in the opening mask. Only connections in the conflict list are displayed, connections are automatically renamed and a consecutive number is added. In order to solve conflicts, you have the opportunity to eliminate all conflicts together in the mask that opens. Depending on which button you select, the appropriate selection is made for all conflicts. Of course you can continue to make individual decisions for individual connections, the respective button then "overwrites" each time previously selected option:

• Select “Keep all” if you want to use the application you are currently using.
• Choose “Rename all” if you want to keep your existing connection and want to receive the imported connection in parallel. Select a name for it until the red circle with the cross disappears.
• Choose “Replace all” if your existing connection is to be replaced by the imported connection.

Confirm your selection with “OK”.

If connections cannot be carried out sensibly during the import, you get a message “Update import project” with the message “You can import this project if you apply following changes”. If you accept the offered changes, confirm with the “Import with changes” button.
