OPC Router Portainer Edge Template deployment

note

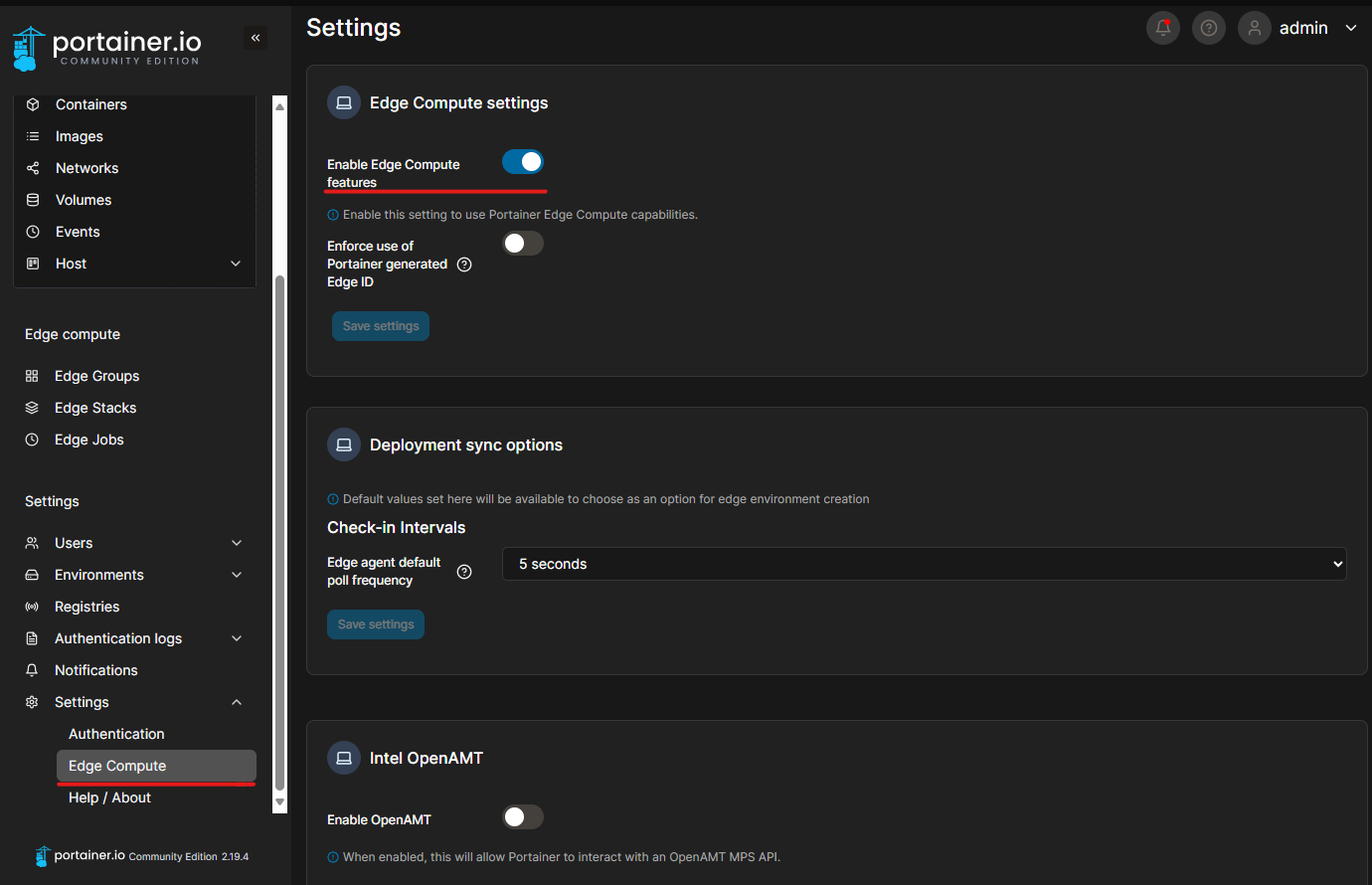

In order that the following steps works, the "Edge Compute" function must be enabled, as shown in the image above.

You must also have previously created at least one Edge Environment and added it to an Edge group. Tags can be used to assign Edge Environments to Edge Groups.

How to an Add Edge environment : Add an Edge environment
Documentation on Edge groups : Edge Groups

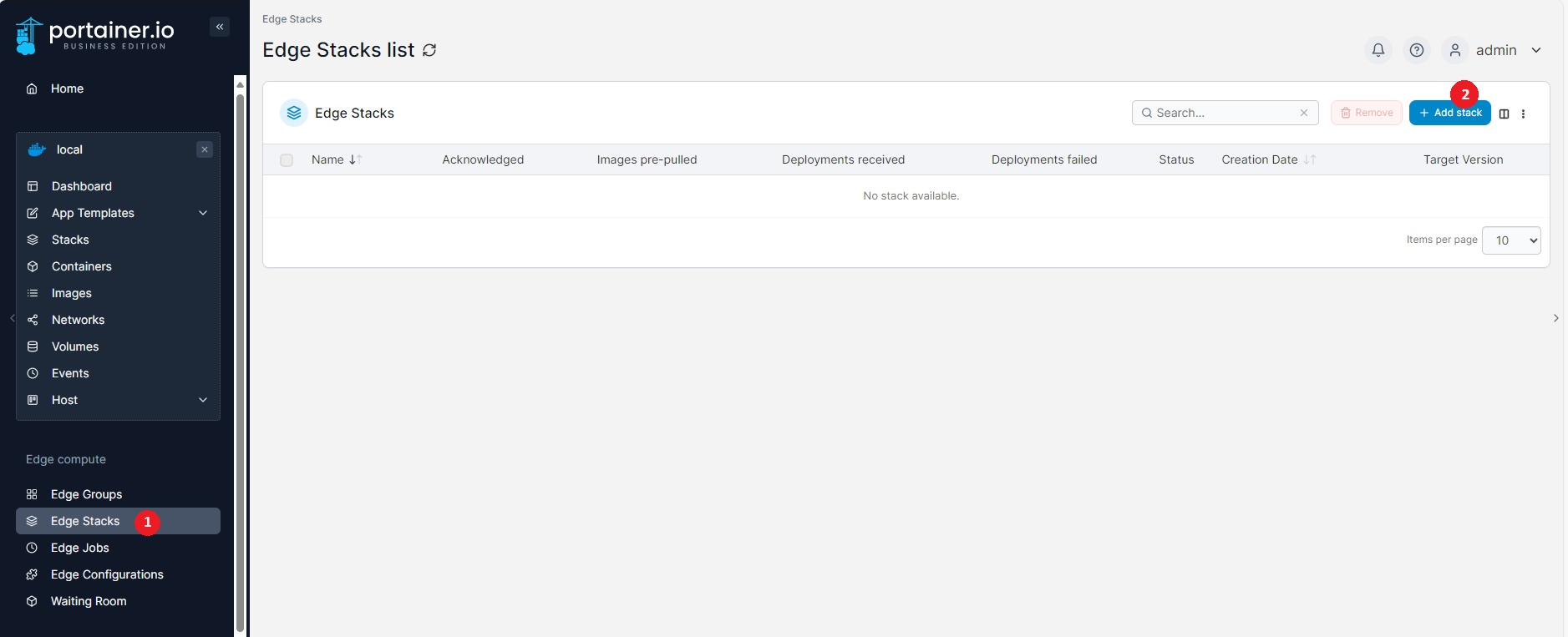

Navigate to the Edge Stacks (1) and click on Add stack (2).

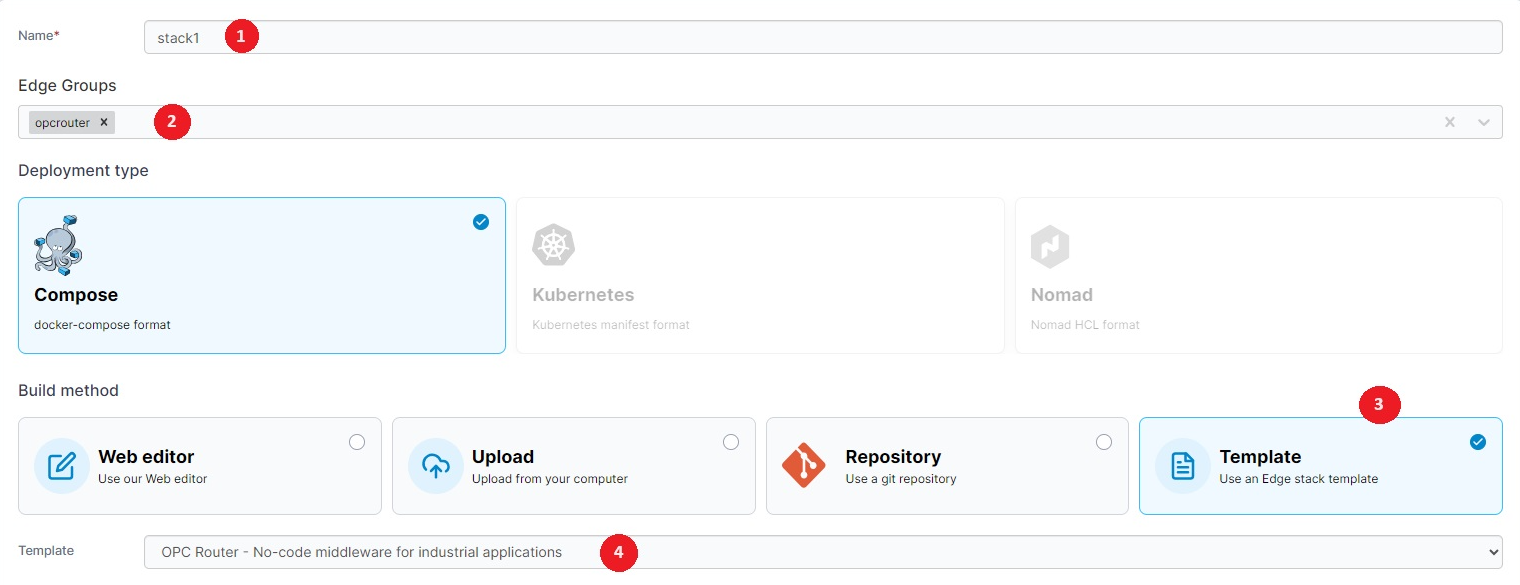

On the new page, enter the name that you want into the Name Field (1). Choose a group in the Edge Groups (2) Choose Template (3) as the Build method and the template "OPC Router - No-code middleware for industrial applications" (4)\

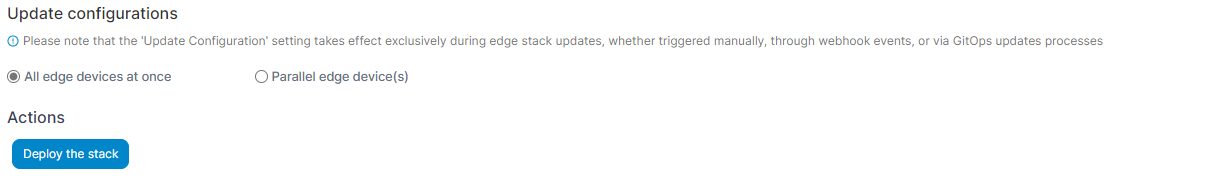

And finally, click on "Deploy the stack".

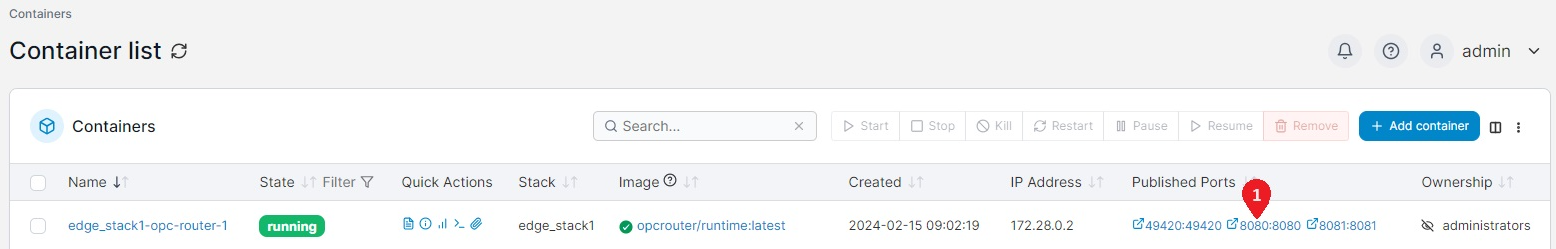

The OPC Router should now be shown on the Container list. Its web management can be accessed via the port to which the internal port 8080 is mapped (1).
