SAP-BAPI Transfer Object

SAP BAPI can be used both as source or destination. A set of SAP access data has to be specified within the plug-in configuration. The transfer object is created as described above.

Projektierung SAP-BAPI

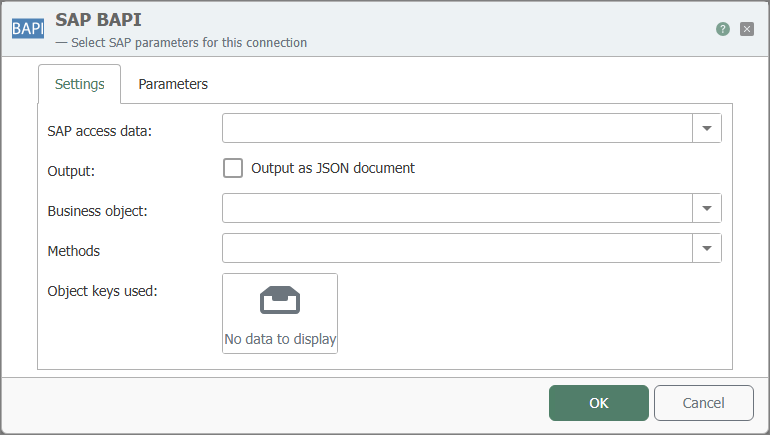

Open transfer object by double click and configure as follows:

Tab Settings


SAP access data	Select SAP set of access data.
Output	Provides the results of the BAPI call as a JSON document for further processing.
Business object	Select Business Object.
Methods	Select one of Business Object’s methods.
Object keys used	Object keys define an object positively and are added automatically. Required if method depends on instance.

Registerkarte: Parameters


Please specify a function	Select the required parameters by setting the appropriate check mark. You can also take whole categories if you place the checkmark accordingly. Note: The specified table must have a primary key. Tables without primary keys are not supported.
Copy JSON format	Copies a JSON document to the clipboard whose structure corresponds to the function call.

Please specify a function

Select the required parameters by setting the appropriate check mark. You can also take whole categories if you place the checkmark accordingly.

Note: The specified table must have a primary key. Tables without primary keys are not supported.

Copy JSON format

Copies a JSON document to the clipboard whose structure corresponds to the function call.

Parameters are categorized:

Import: Data transfer into SAP system
Export: Data transfer from SAP system
Change: Data transfer into SAP system and return of changed values.

Categories may contain sub-categories, e. g. “Table” containing data tables.
