Service status
If you click on

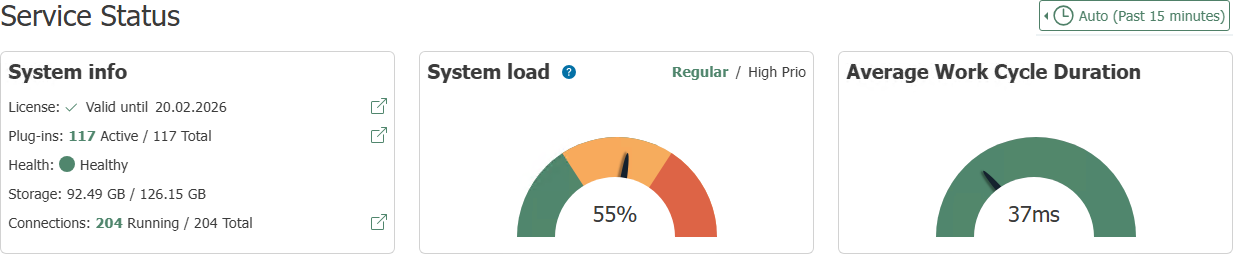

in the status view, a dashboard with values for the service status opens.
At the top right, you can set the time period for which data should be displayed.

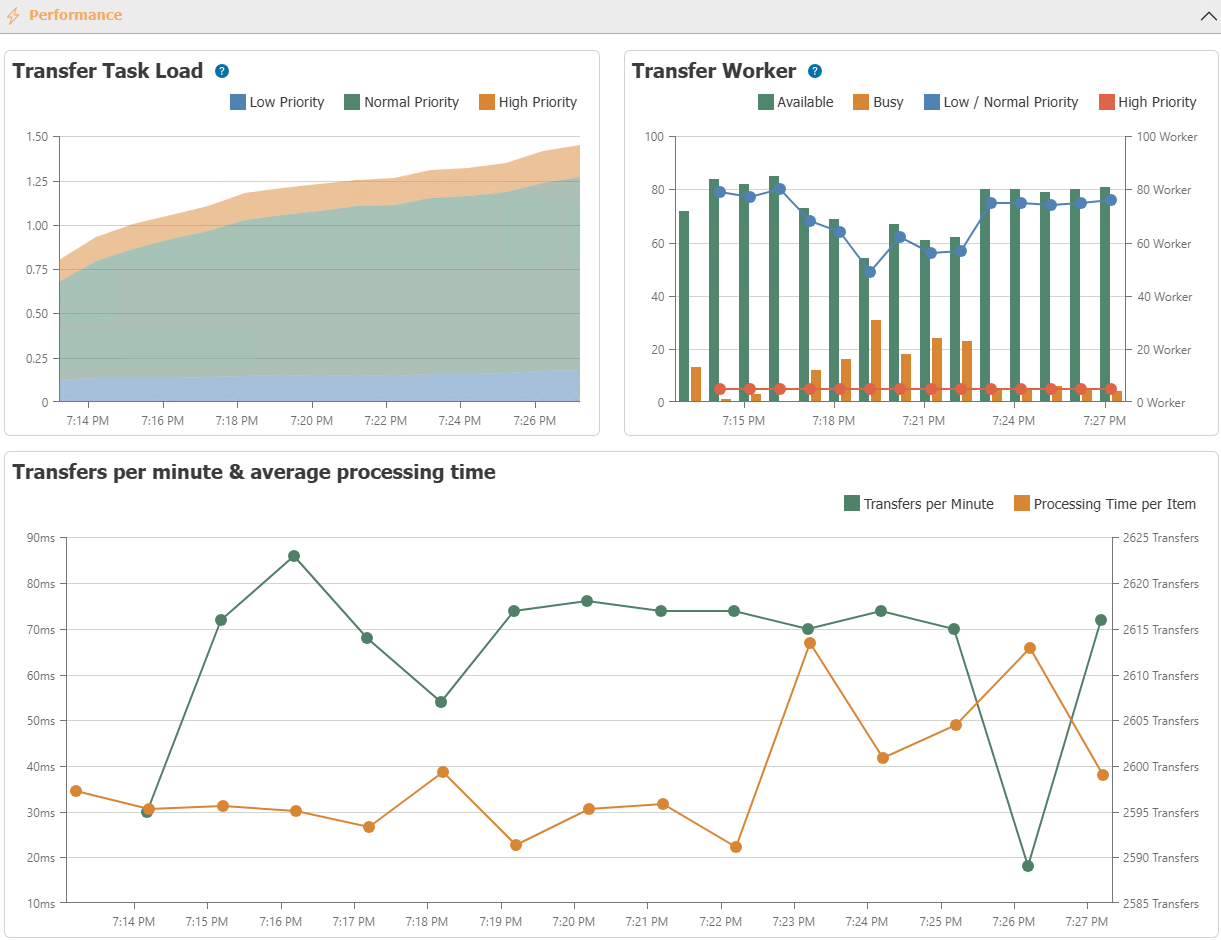

Performance
This section displays:
- How much of the OPC Router's capacity is being used, grouped by connection priorities.
- How many transfer workers of each priority are active.
- How many transfer workers are available or busy.
- How many transfers are performed per minute and how long the processing time is for individual items.
Timing
This section displays:
- How many operations the transfer manager performs per minute.
- How long the transfer manager took for the operations, grouped by the final result.

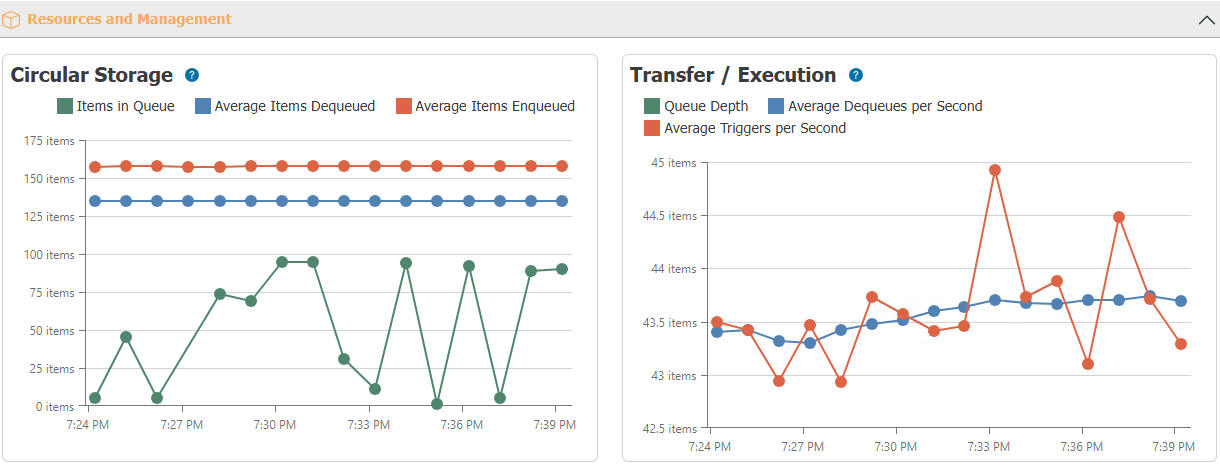

Resources and Management
This section shows:
- How many items are in the ring buffer.
- How many elements are added to the ring buffer on average.
- How many elements are removed from the ring buffer on average.

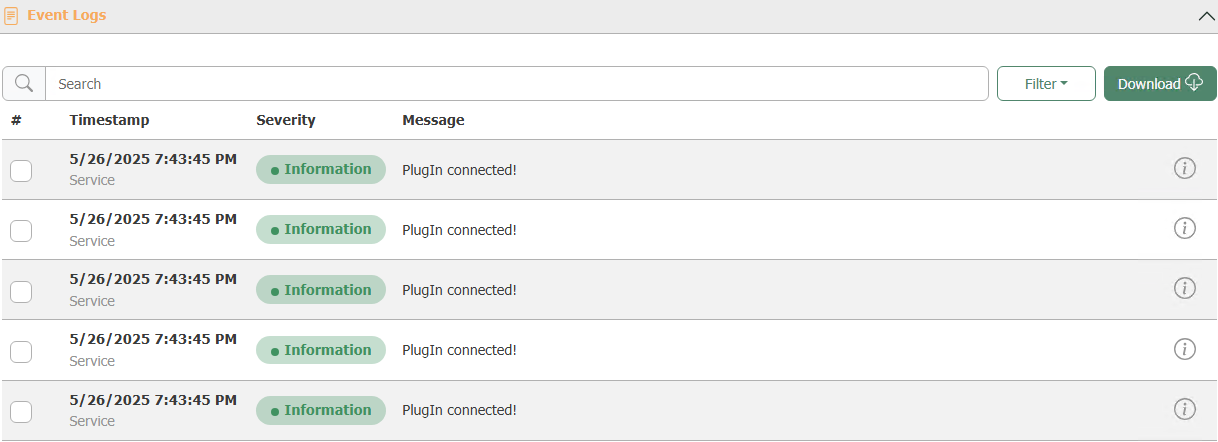

Event Logs
This section lists the log messages of the OPC router.
The messages can be filtered by message type. It is also possible to download the logs.
