SAP IDoc Transfer Object

You use the SAP IDoc Transfer Object to send IDocs (Intermediate Documents) to an SAP® system. IDocs are available as both sources and destinations. The transfer object sends IDocs; IDocs are received via the IDoc Trigger.

Dialog Overview

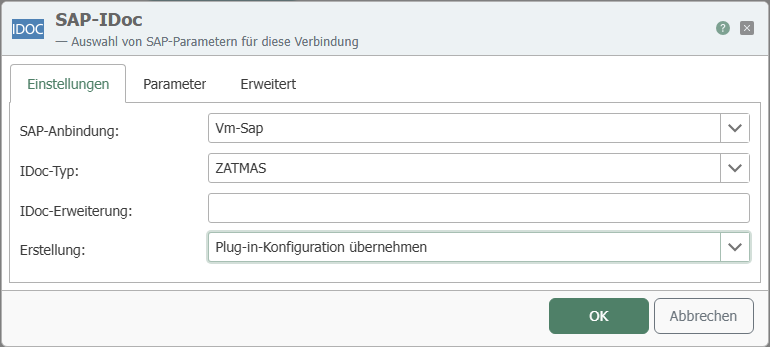

The screenshot shows the selection of the SAP® connection and the IDoc type, as well as the configuration of creation and parameters.

Settings

Property	Description
SAP Connection	All SAP® connections created in the Plug-ins section are available for selection here. If the desired connection does not yet exist, you can make it available in the Plug-ins section as an SAP® Connection.
IDoc Type	Selection of an IDoc type provided by the SAP® system.
IDoc Extension	Class extension of the base IDoc type (CIMTYP, customer-specific extension).
Creation	Determines how the IDoc is structured: Apply Plug-in Configuration uses the setting selected in the SAP® plug-in under “IDoc Handling.” Create Empty IDoc sends the IDoc loaded from SAP®, but clears the existing elements and transfers only your own changes. Use Template from SAP® System adopts the default values stored in the SAP® system from the IDoc segments.

Parameters

Property	Description
Parameter Selection	Select the required data segments—that is, the elements to be read or written.

You can write multiple data records to an IDoc at the same time; the required data segments are then created multiple times. Conversely, an IDoc can also deliver multiple data records.

note

IDocs that cannot be sent are temporarily stored in an IDoc queue.

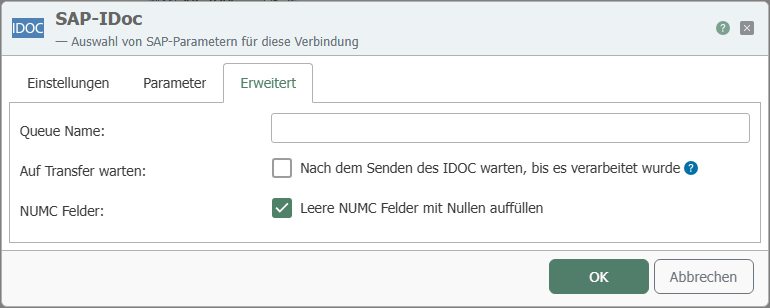

Advanced

Property	Description
Queue Name	Name of the IDoc queue in which IDocs that cannot be sent are temporarily stored.
Wait for Transfer	If enabled, the transfer object waits after sending the IDoc until it has been processed in the SAP® system.
NUMC Fields	The option Fill empty NUMC fields with zeros automatically fills empty numeric fields (type NUMC) with zeros.
