REST Server

The REST Server plug-in can be used to provide APIs that are accessible from outside the OPC Router.

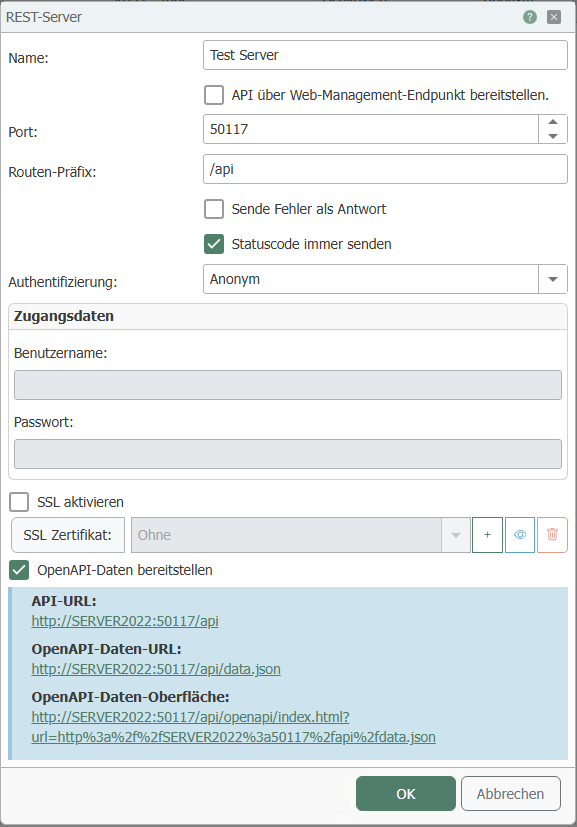

The following properties can be configured for the REST server:

Rest Server

Name	Description
Name	Any name under which the REST server appears in the connection project. Choose a name that is unique to you during connection projecting.
Provide API via web management endpoint	If this option is enabled, the port of the OPC Router Web Management is used to provide the API in addition to the selected port. Note: The target address of the API is extended by the prefix "services/{Plug-in Name}". Note: If you use this function with Siemens Industrial Edge, the address without /opcrouter must be specified for clients in order for the connection to work. If the address in the plug-in is displayed as https://172.20.10.220/opcrouter/services/Test/api, https://172.20.10.220/services/Test/api must be specified in the client.
Port	The port on which the API should be accessible. Note: The port must not already be in use. It is also important to enable the port in the firewall if you want to access the API from another device.
Route prefix	The prefix that must be specified after the IP address and port to reach the API. Example: If the route prefix is "/api", the full URL would be {IP/hostname}:{port}/api
Send errors as a response	If this option is enabled, the status code is sent as a response when an error occurs.
Always send status code	The status code is always sent, e.g., in the case of a successful transfer.
Authentication	Specify how to authenticate externally: Anonymous Basic Lock API
Username (available with Basic authentication method)	Username for login.
Password (available with Basic authentication method)	Password for login.
SSL	If this option is active, SSL is used for the connection.
SSL certificate (available when SSL is enabled)	Certificate to be used for connections. The plus sign is used to add a certificate, the trash can to remove a certificate. The eye icon can be used to view the properties of the selected certificate.
Provide OpenAPI data	Enable this option if you want to provide OpenAPI data. This is done in the form of a JSON file.

MCP server

Property	Description
Enable MCP	This setting enables MCP for the REST server.
Authentication	There are two options for authentication: None: No authentication for MCP Bearer Token: MCP is secured with bearer token authentication.
Route Prefix	Route prefix for the MCP endpoint
Bearer Token	The bearer token for authentication with bearer tokens can be configured here.
